Notícias

CES 2018 - News from Las Vegas


Dan D'Agostino Master Audio Systems

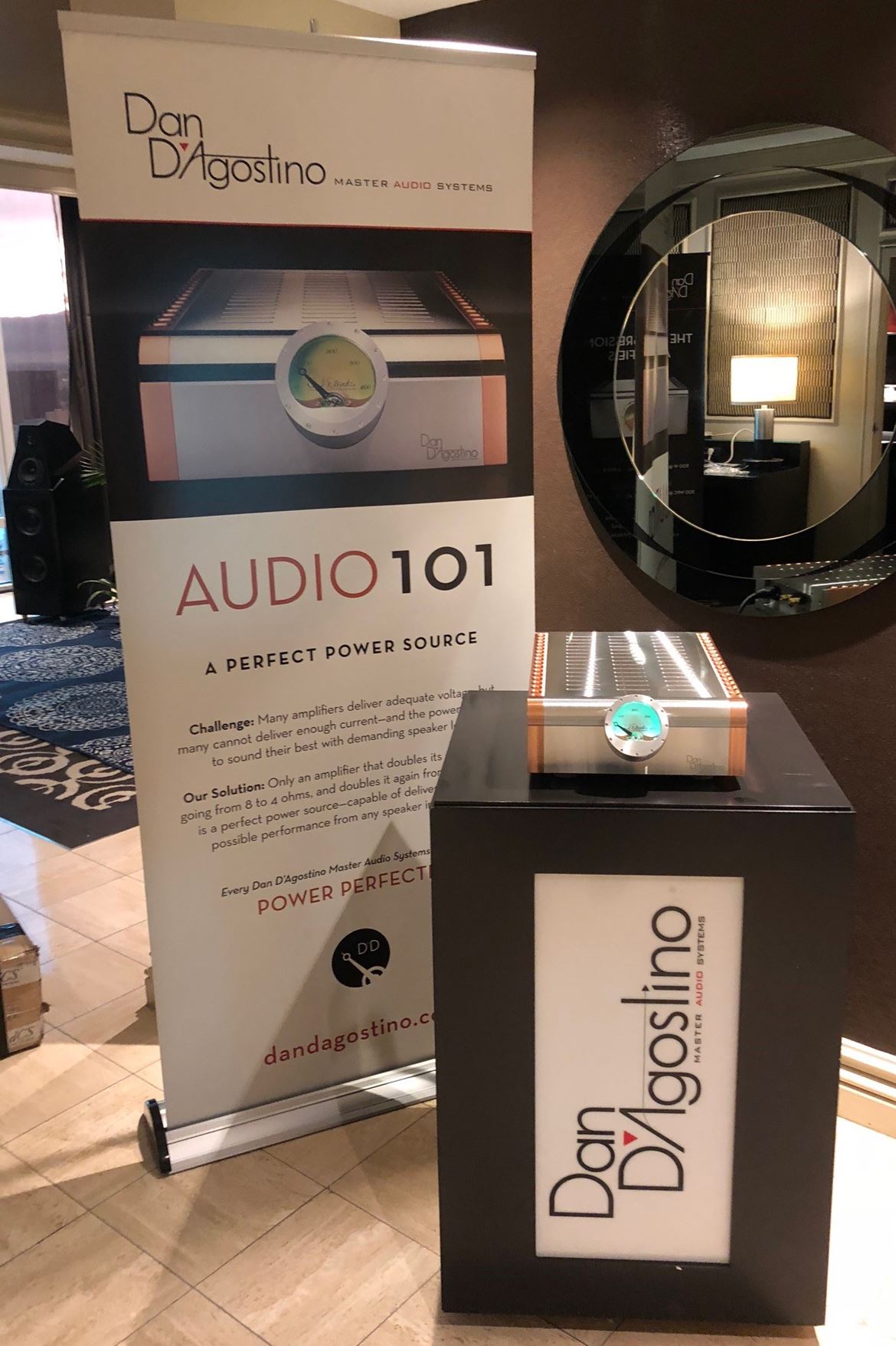

CES 2018 - The Perfect Power Source - Dan D'Agostino M400. Foto cortesia de Bill McKiegan para o Hificlube.net. Nota: a nossa notícia (à distância) da existência de um novo amplificador de D'Agostino revelou-se muito exagerada. Talvez lá para Março..., diz o Bill. Ou seja: talvez lá para Maio no Highend 2018, e já não vai chamar-se Helius.

CES 2018 - The Perfect Power Source - Dan D'Agostino M400. Foto cortesia de Bill McKiegan para o Hificlube.net. Nota: a nossa notícia (à distância) da existência de um novo amplificador de D'Agostino revelou-se muito exagerada. Talvez lá para Março..., diz o Bill. Ou seja: talvez lá para Maio no Highend 2018, e já não vai chamar-se Helius.

Dan D'Agostino com Bill McKiegan , John Quick e David Steven (dCS)

Dan D'Agostino com Bill McKiegan , John Quick e David Steven (dCS)

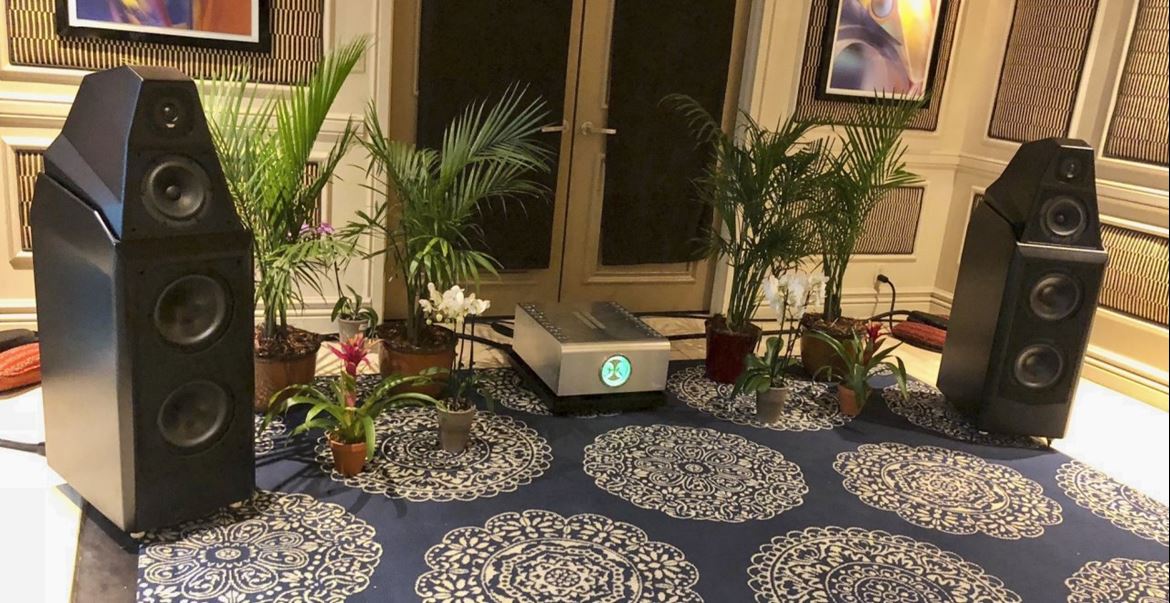

A suite exclusiva da dCS - Dan D'Agostino - Wilson Audio deve ter sido a' talk of the town', numa Las Vegas carente de áudio highend

A suite exclusiva da dCS - Dan D'Agostino - Wilson Audio deve ter sido a' talk of the town', numa Las Vegas carente de áudio highend

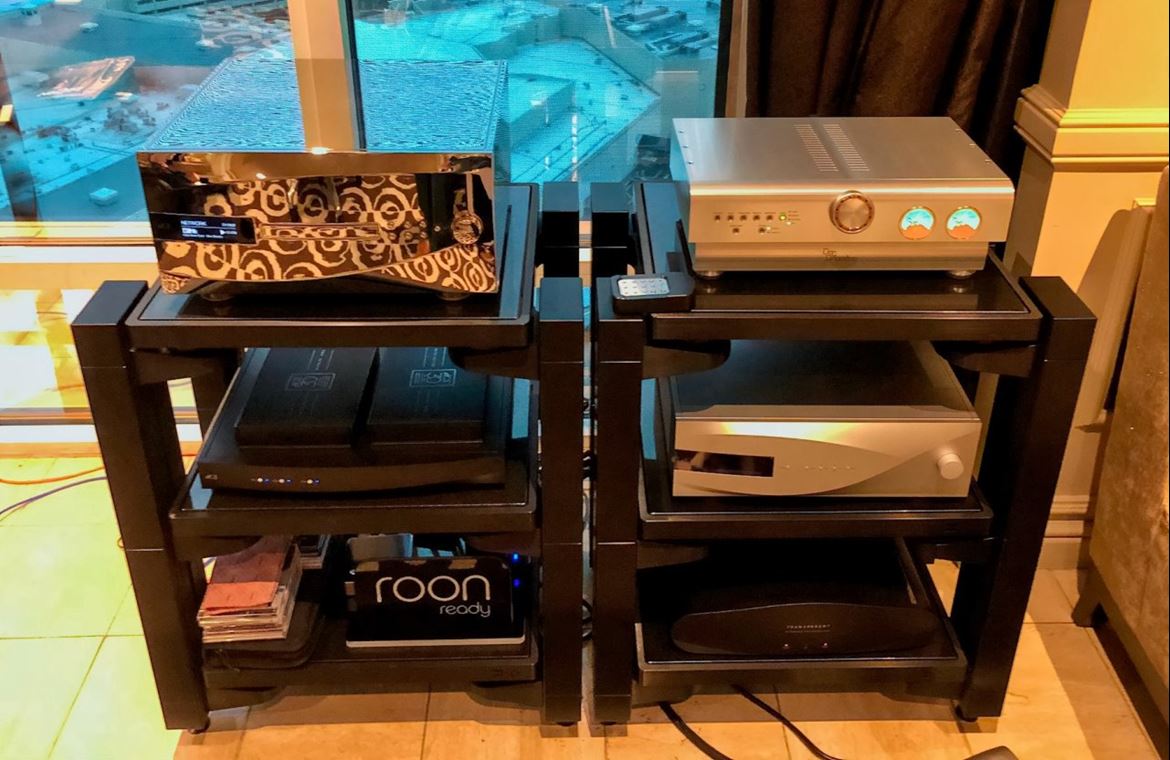

O prévio Progression recebeu a seiva de dCS  Vivaldi One dourado c/ módulo MQA

O prévio Progression recebeu a seiva de dCS Vivaldi One dourado c/ módulo MQA

Coisas do 'caraças' em Las Vegas

No meio de drones que mergulham na água, malas de viagem que seguem o dono como um cão e câmaras 3D que enviam a sua 'caraça' para uma impressora 3D, lá aparecem alguns novos (ou nem por isso) produtos áudio, que é a nossa área:

A Bellus 3D faz a sua caraça em 3D em três tempos

A Bellus 3D faz a sua caraça em 3D em três tempos

Chord apresenta Qutest em Las Vegas

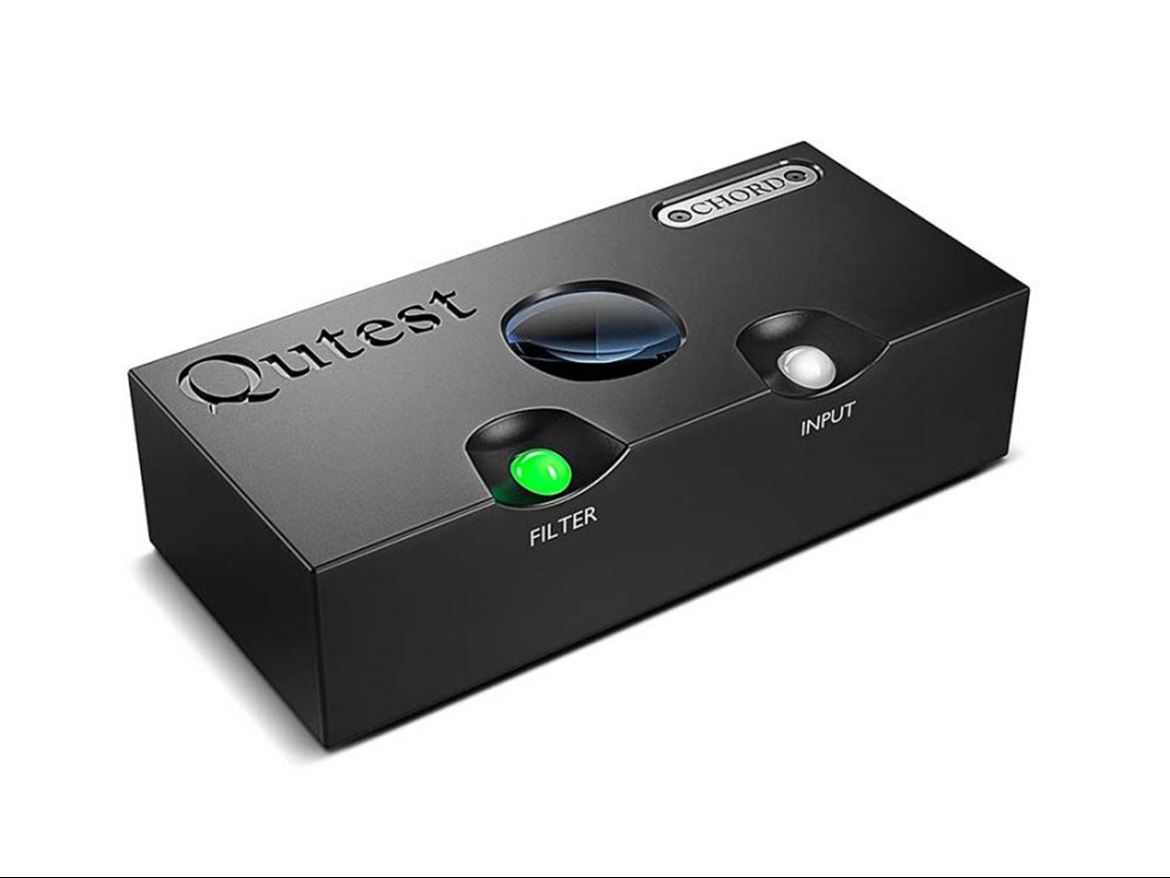

Chord Qutest, another brick in the Chord Wall of Fame

Chord Qutest, another brick in the Chord Wall of Fame

Eis a sua hipótese de ter um Chord Hugo 2 por quase metade do preço. O Qutest, que substitui o Qute, utiliza o mesmo circuito de conversão do Hugo 2, menos o amplificador de auscultadores e as baterias de Li-on que o tornam portátil, ou pelo menos transportável. O Qutest é apenas para utilizar na secretária.

CES Las Vegas, NV, January 9, 2018 — NAD Electronics, a leading manufacturer of premium home audio and video products, announced a new and improved Digital Amplifier, the D 3020 V2, as well as a lower price. The company’s best-selling amplifier was updated with cosmetic refinements and by popular request, the addition of Moving Magnet phono inputs. Drawing on their decades of analogue know-how, NAD engineers designed the phono stage for the highest possible performance, featuring accurate RIAA equalization, ultra-low noise and an infrasonic warp filter.

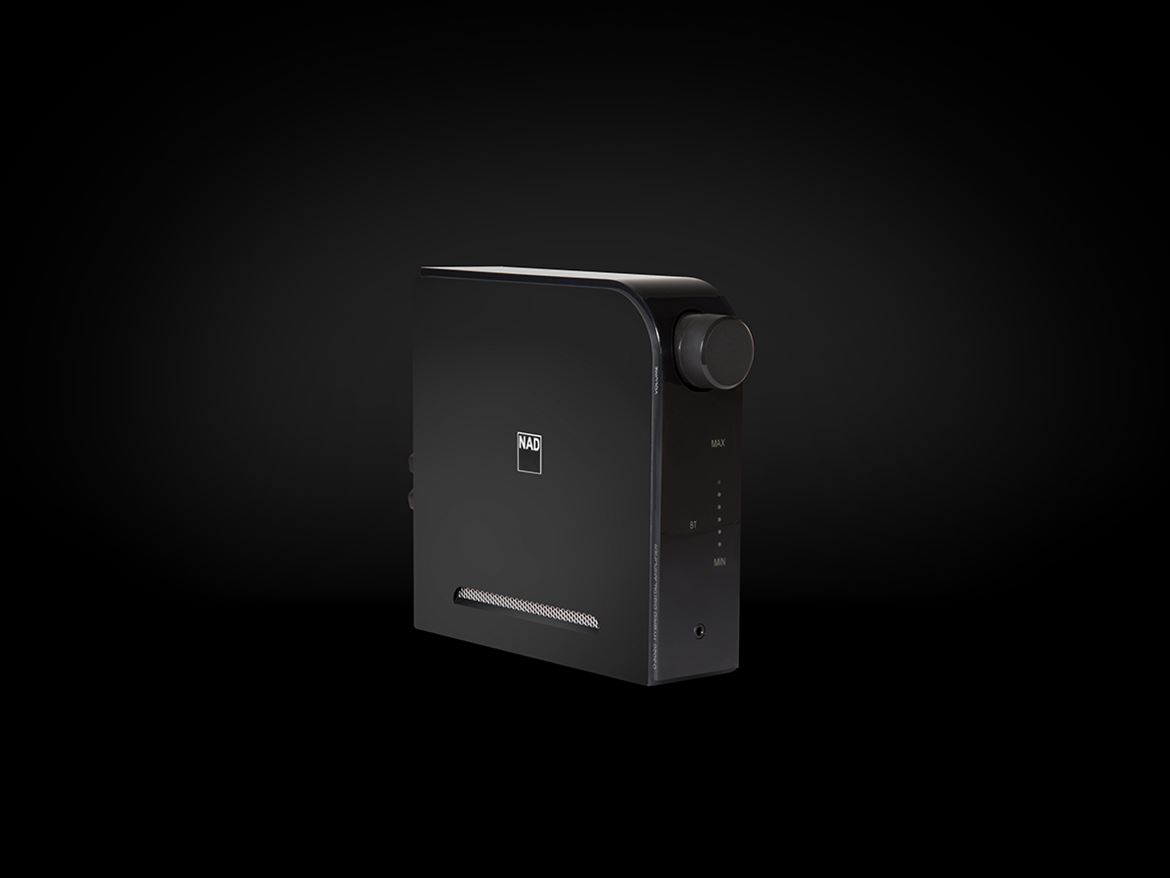

NAD D 3010 V2

NAD D 3010 V2

Key Features of the NAD D 3020 V2 Amplifier:

  • Best of Both Worlds – High performance Moving Magnet Phono Stage added for vinyl lovers to complement digital connectivity
  • Preamp Output for added connection flexibility
  • New easier-to-read front panel display
  • Higher performance, Lower Lows – NAD’s advanced digital engineering delivers lower distortion, lower noise and lower power consumption.
  • Energy-Saving – new design technology consumes less power to operate
  • Eco-Friendly – new models contain fewer non-renewable resources to manufacture.
  • Compact footprint- can be used almost anywhere, either vertically or horizontally

Pro-Ject Jukebox E

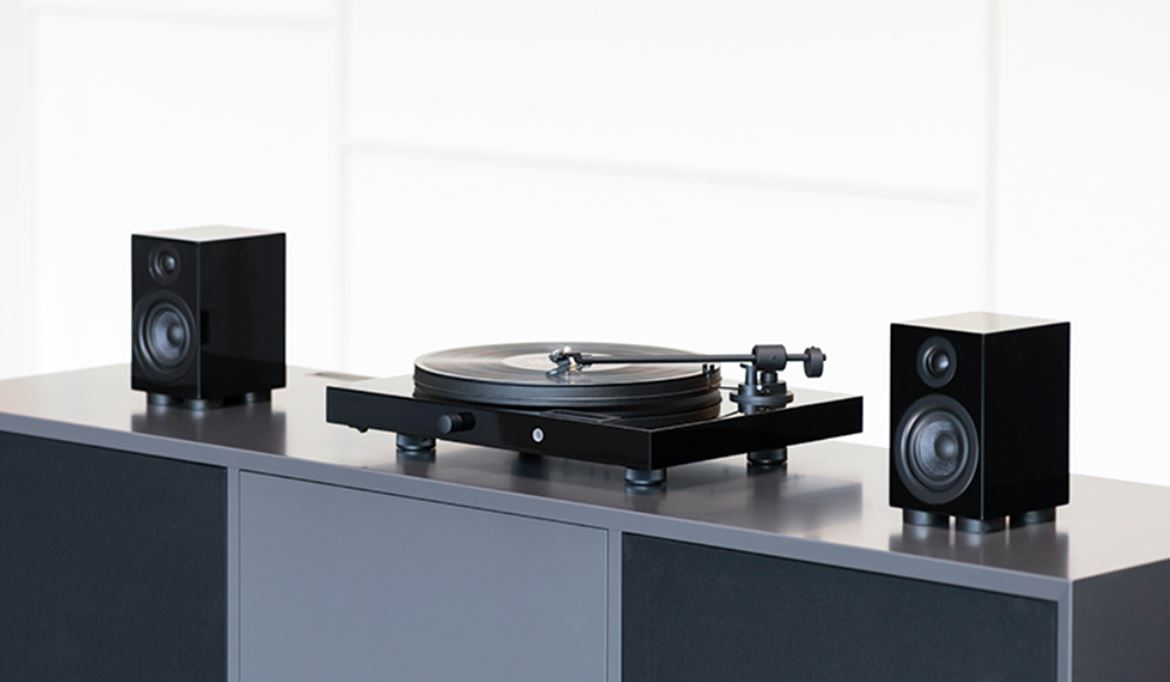

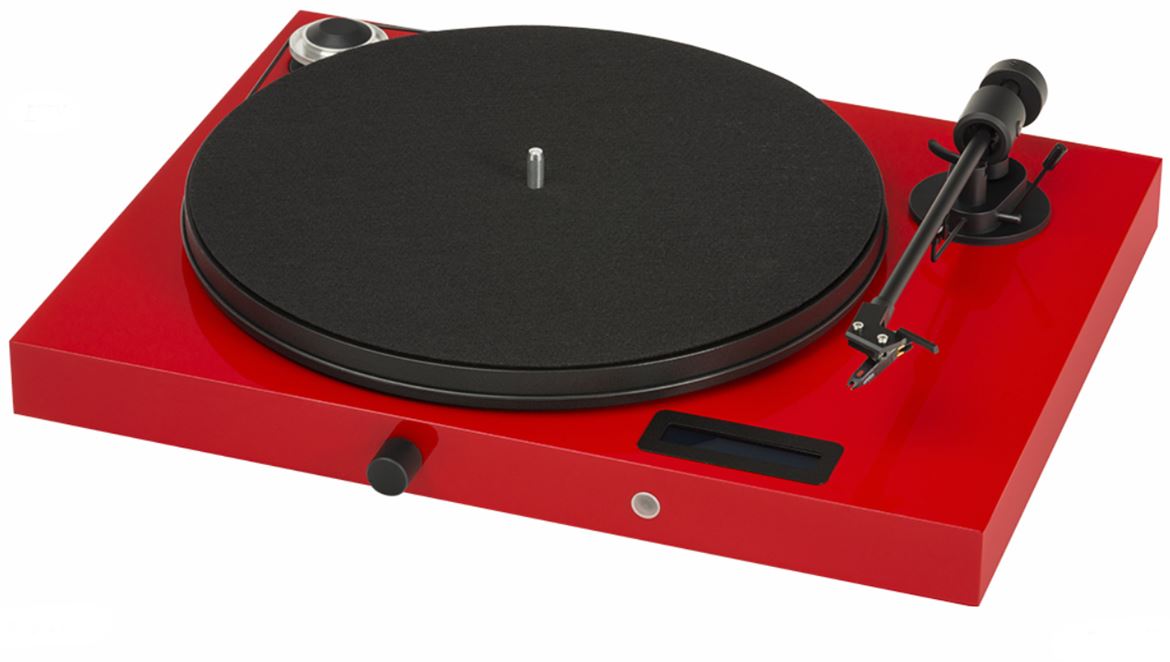

Pro-Ject Jukebox E, um giradiscos analógico já com amplificação de Classe D integrada, é só juntar um par de colunas passivas.

Pro-Ject Jukebox E, um giradiscos analógico já com amplificação de Classe D integrada, é só juntar um par de colunas passivas.

AJukeBox E também tem Bluetooth para ligar o smartphone ou o iPad. Os discos são só para mostrar à malta que és um gajo 'cool'...

AJukeBox E também tem Bluetooth para ligar o smartphone ou o iPad. Os discos são só para mostrar à malta que és um gajo 'cool'...

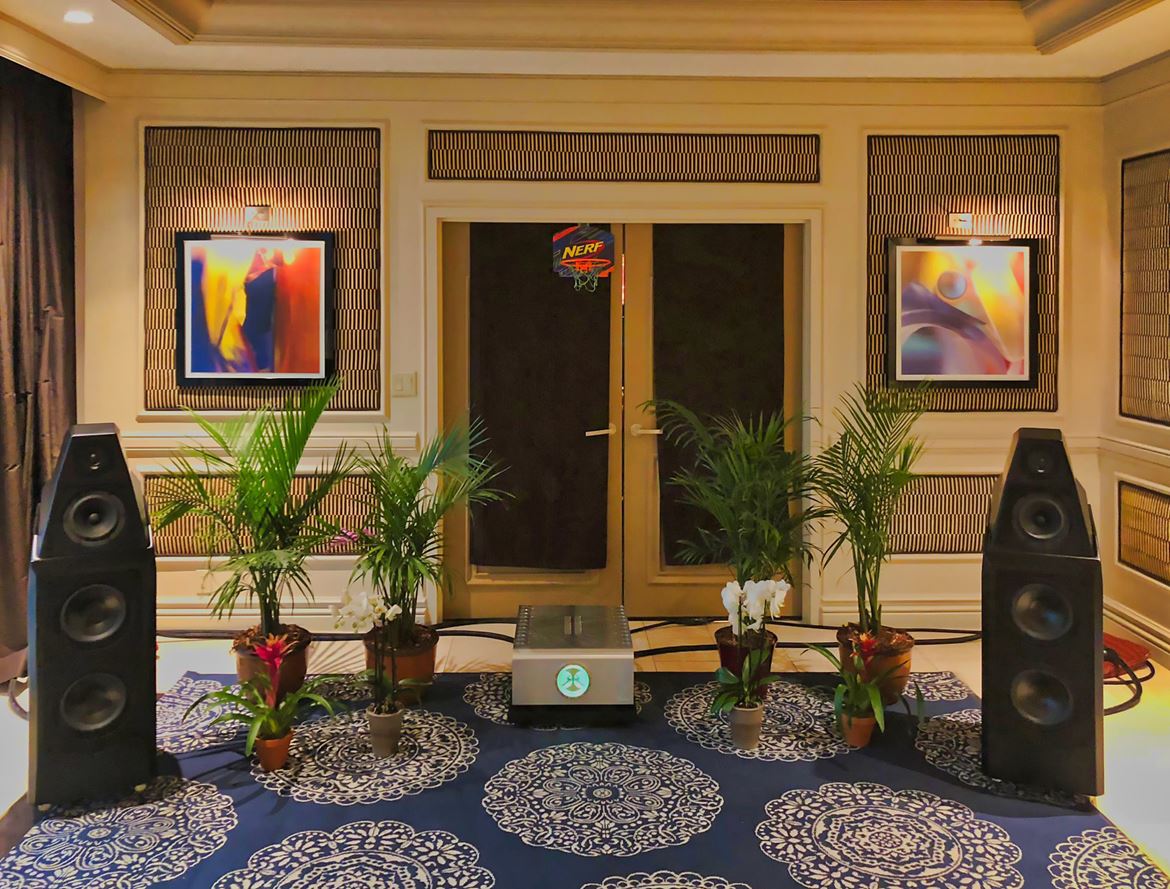

Dan D'Agostino hospedou-se no Mirage com o Progression Stereo e as Wilson Audio Sasha 2

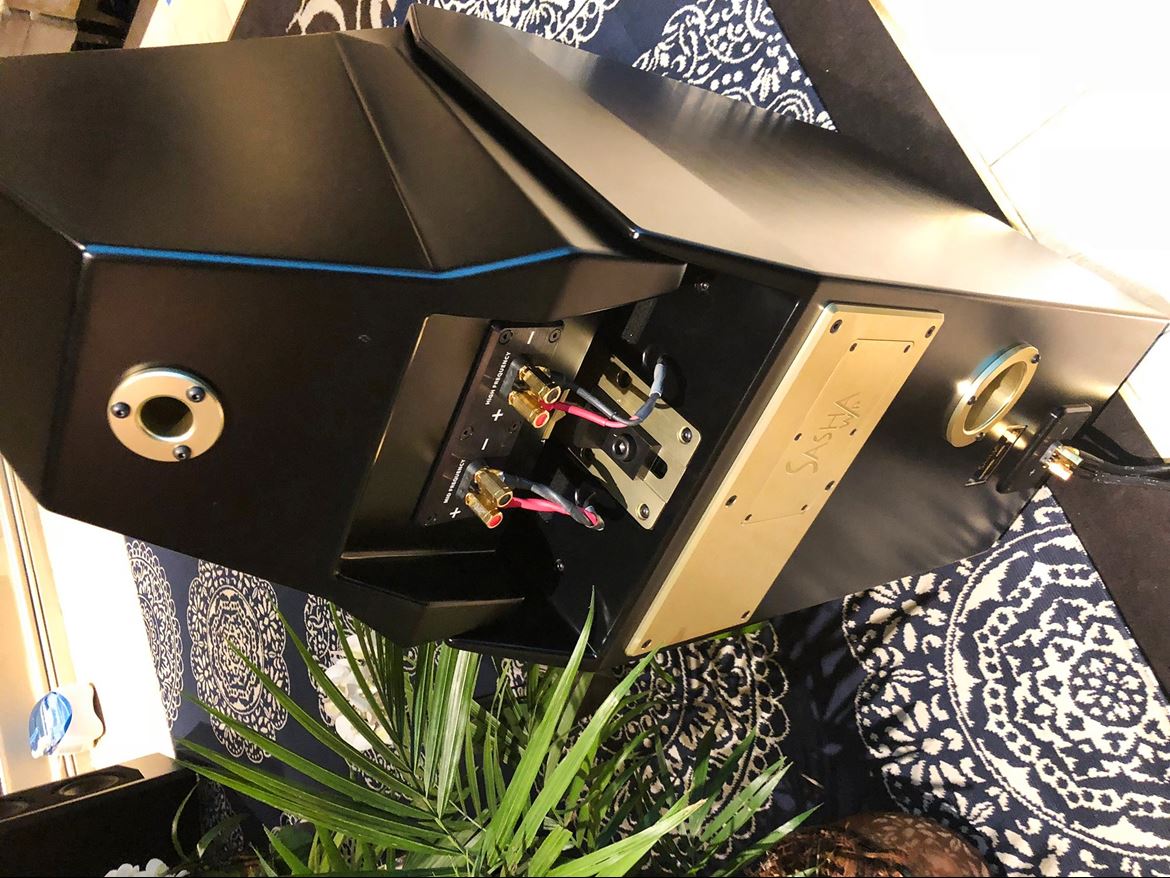

Estas Sasha II são únicas porque todos os elementos em metal são dourados (foto cortesia Daryl Wilson para o Hificlube.net)

Estas Sasha II são únicas porque todos os elementos em metal são dourados (foto cortesia Daryl Wilson para o Hificlube.net)

No Venetian, a VTL fez par com as Wilson Audio Duette

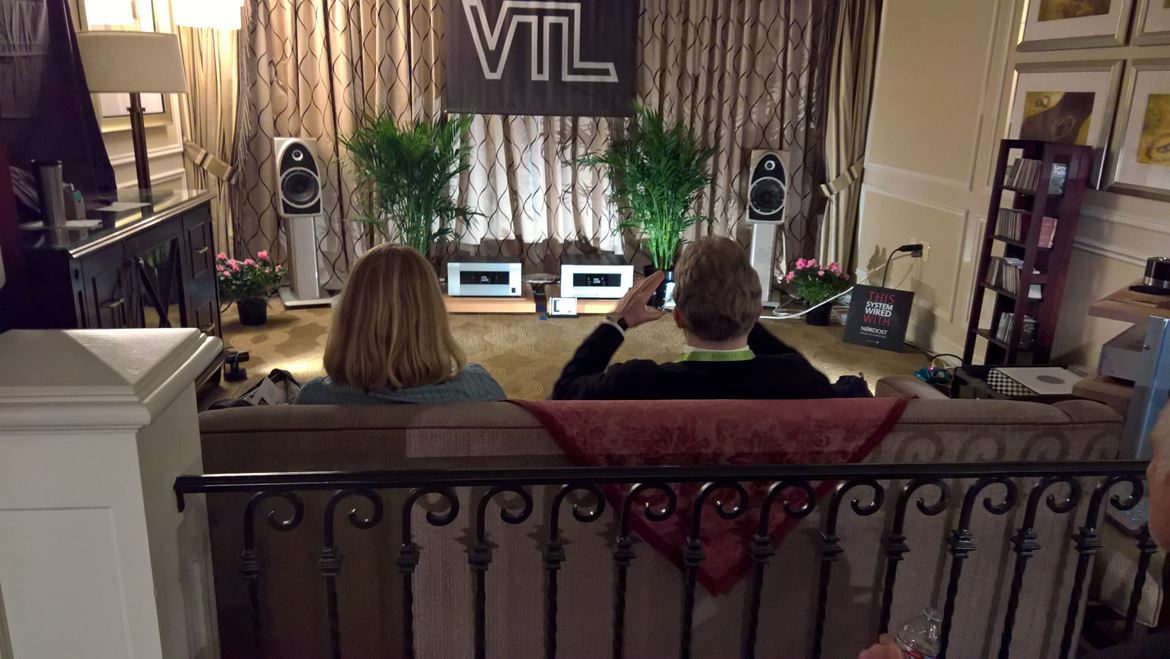

CES 2018 - VTL e Wilson Audio (foto graciosamente enviada por Daryl Wilson para Hificlube.net)

CES 2018 - VTL e Wilson Audio (foto graciosamente enviada por Daryl Wilson para Hificlube.net)

Nagra HD Preamp ganha um CES 2018 Innovation Award

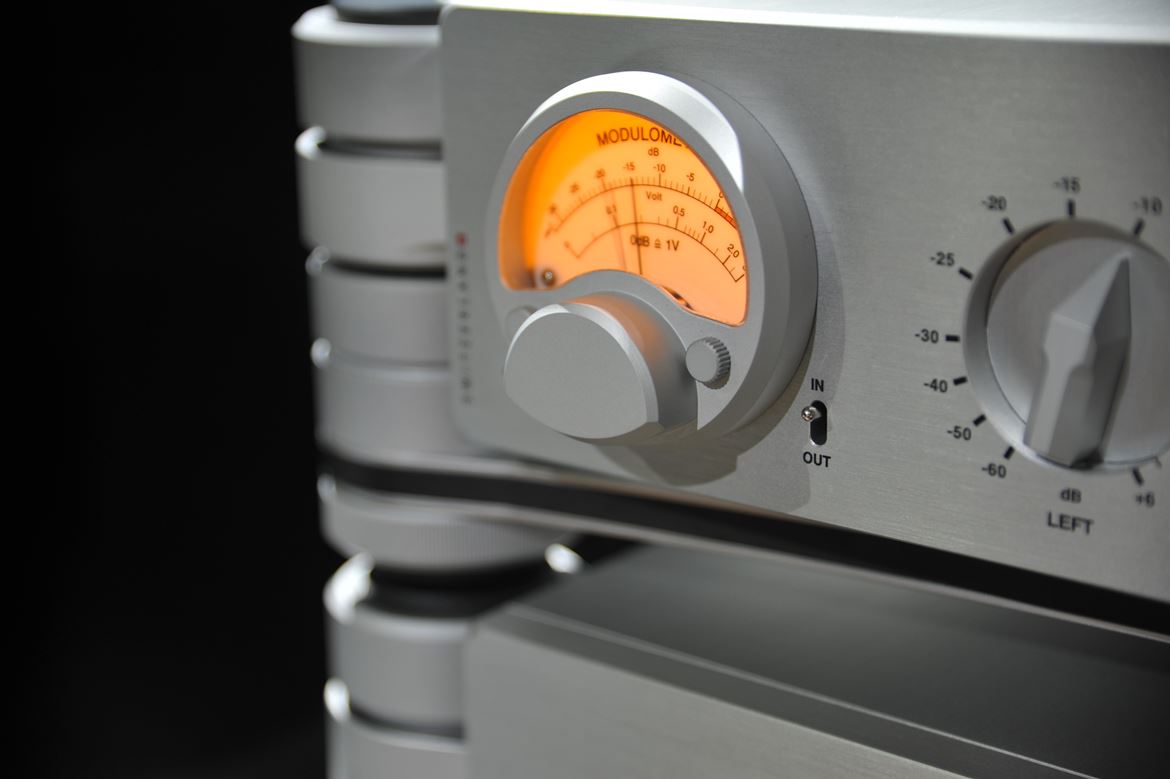

Pormenor dos modulómetros do novo Nagra HD Preamp

Pormenor dos modulómetros do novo Nagra HD Preamp

Twenty years after the Nagra PL-P preamplifier was released on the high-end market, Audio Technology Switzerland introduced his new Nagra HD PREAMP. It has been created as a perfect partner for the Nagra HD DAC and the Nagra HD AMP. In many respects, the HD PREAMP project started from a blank page. The philosophy of the design is nothing but the same as the HD DAC plus some very unusual features. Every aspect and step in the design process involved research to find the most elegant solution to accurately and faithfully convey the music from the source to the amplifier. As a result, the HD PREAMP - also a tube design - includes several patent-pending technologies that take the music listening experience to new heights.

As a tribute to legendary Nagra II recorder and Nagra PL-P preamplifier, the HD PREAMP features the mythical modulometer, a custom-made measurement unit that differs from traditional Vu-meter, as modulometers are faster and more accurate.

Nagra’s unique approach to designing audio products draws on 65 years of experience in the field, a large and skilled R&D group as well as extensive listening sessions. This frequently results in a very organic and natural sound. The audio circuit topology of the HD PREAMP is fully analogue, tube based, dual mono, without any kind of negative feedback anywhere along the signal path, and it has a separate power supply featuring Super Cap capacitors.

While a selected N.O.S triode input stage takes care of current amplification and impedance matching, the voltage amplification is passively done with high-end shielded toroidal audio transformers whose voltage ratio is variable and digitally controlled (Nagra patent application) on a 0,5 dB step basis. They are designed and made in-house in our factory in Romanel - on Lake Léman shore. The variation of voltage ratio is done switching the multiple windings of the transformers. Multiple aerospace quality- hermetically sealed- relays are used for that purpose while an alternate volume control circuit bypasses the transformers while their windings are being switched in order not to hear any kind of switching noise.

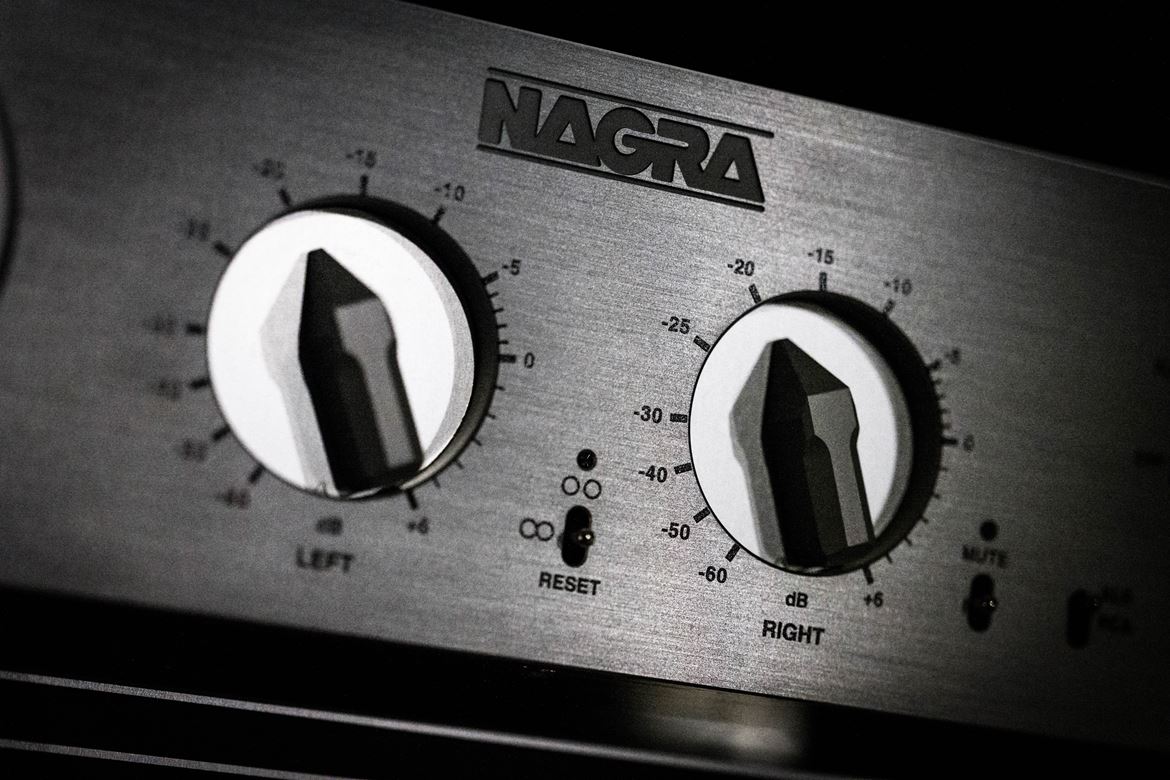

With this simple but revolutionary technique, the audio signal remains intact after the voltage-current conversion through the transformer. The transfer of energy is close to ideal. It is not the case with any other resistor-based volume control because part of the signal is turned into heat through the attenuating resistance. The volume control of the left and the right channels are synchronized thus turning one button makes the other button move the same way. They can be turned separately to adjust the balance if necessary then they will move together keeping the balance adjustment. Moreover the signal output of the HD PREAMP is floating across the audio transformer avoiding ground loops with the power amplifier, and its impedance is extremely low.

Outstanding quality components are used all around, some of them custom made upon strict specifications for Nagra. The NOS - new old stock-triodes and the volume control transformers are shielded with an annealed Mu-metal screen for a perfect insulation to electric and magnetic interferences. The sophisticated power supply is located in a separate chassis. A massive toroidal transformer is providing all the secondary voltages for regulated filament heating, controls and tube regulated high voltage power supply. Like the audio circuit, it uses ultra-high quality components that are specified for extreme applications. Just as the PL-P made use of batteries to isolate the unit from external interferences, the HD PREAMP power supply uses a unique virtual battery technology - built around super-caps - that provides superior results compared to a conventional battery without the inconvenience of dealing with charging time and battery life.

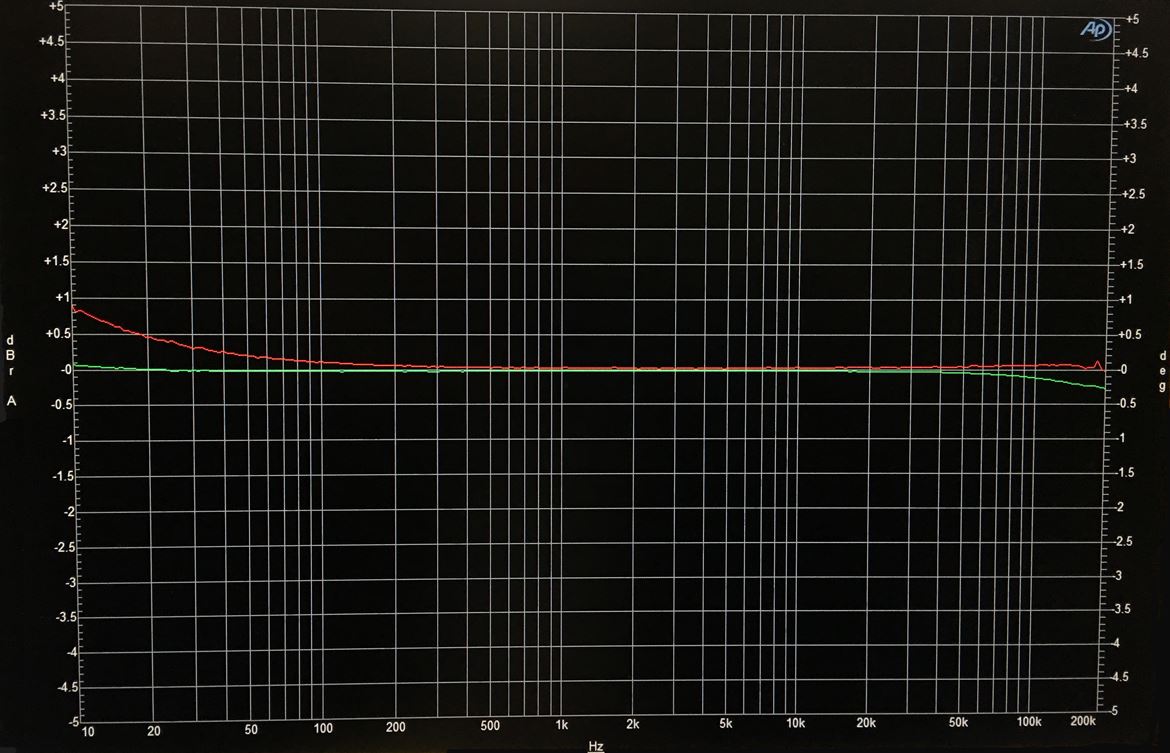

Getting such high quality amplification required so many efforts that it would have been a complete non-sense to spoil it with clumsy or inappropriate choices. Therefore an extreme attention has been paid to all the details that could have jeopardized the perfectness of the HD PREAMP. These resulting measured performances speak for themselves with an amazingly linear bandwidth (green curve) and an almost perfect phase response (red curve) from less than 10 Hz up to more than 200 kHz (-0.25 dB at 200 k Hz).

Nagra HD PREAMP bandwidth and phase response

Nagra HD PREAMP bandwidth and phase response

This guarantees a perfect audible harmonic declination all along the audio range so that the sound reproduction sounds extremely realistic. The noise floor level at the HD PREAMP output reaches uncharted territories whatever the technology of the circuit. It is the lowest ever measured on a Nagra product and probably almost any preamplifier in the market.

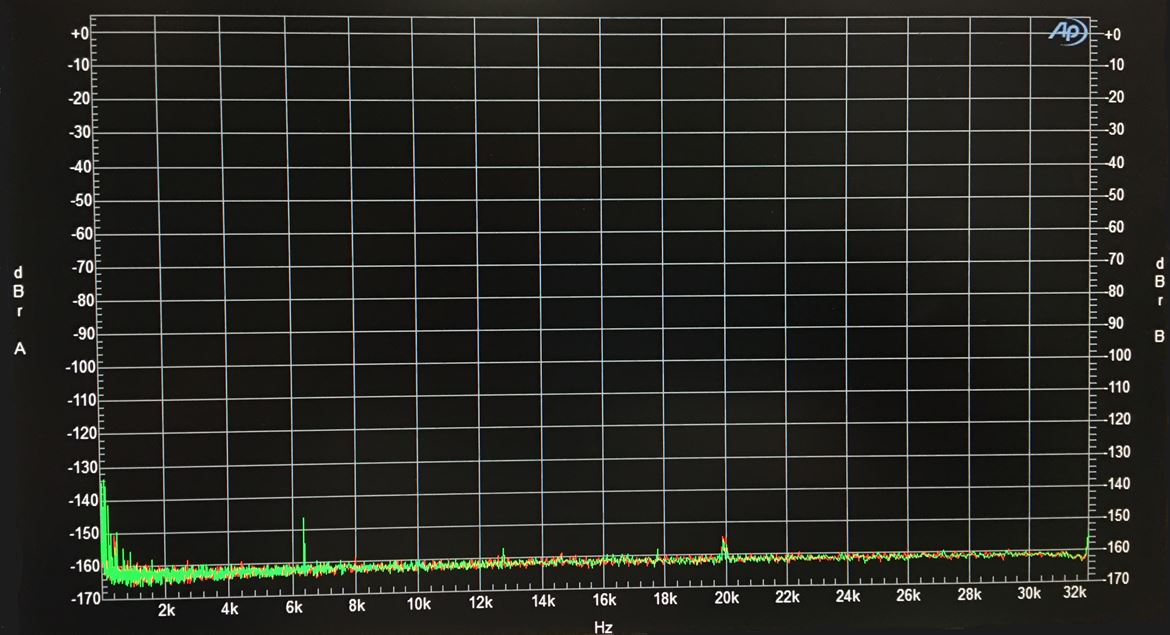

Nagra HD PREAMP noise floor

Nagra HD PREAMP noise floor

The high energy power supply has a huge responsibility in both the transient response of the HD PREAMP therefore in its very wide frequency response. By the way, the technical solutions involving super-caps smoothing and energy storage lead to the exceptional square wave response of the HD PREAMP. The picture here after shows the behaviour of the HD PREAMP to a 16 Hz square wave signal.

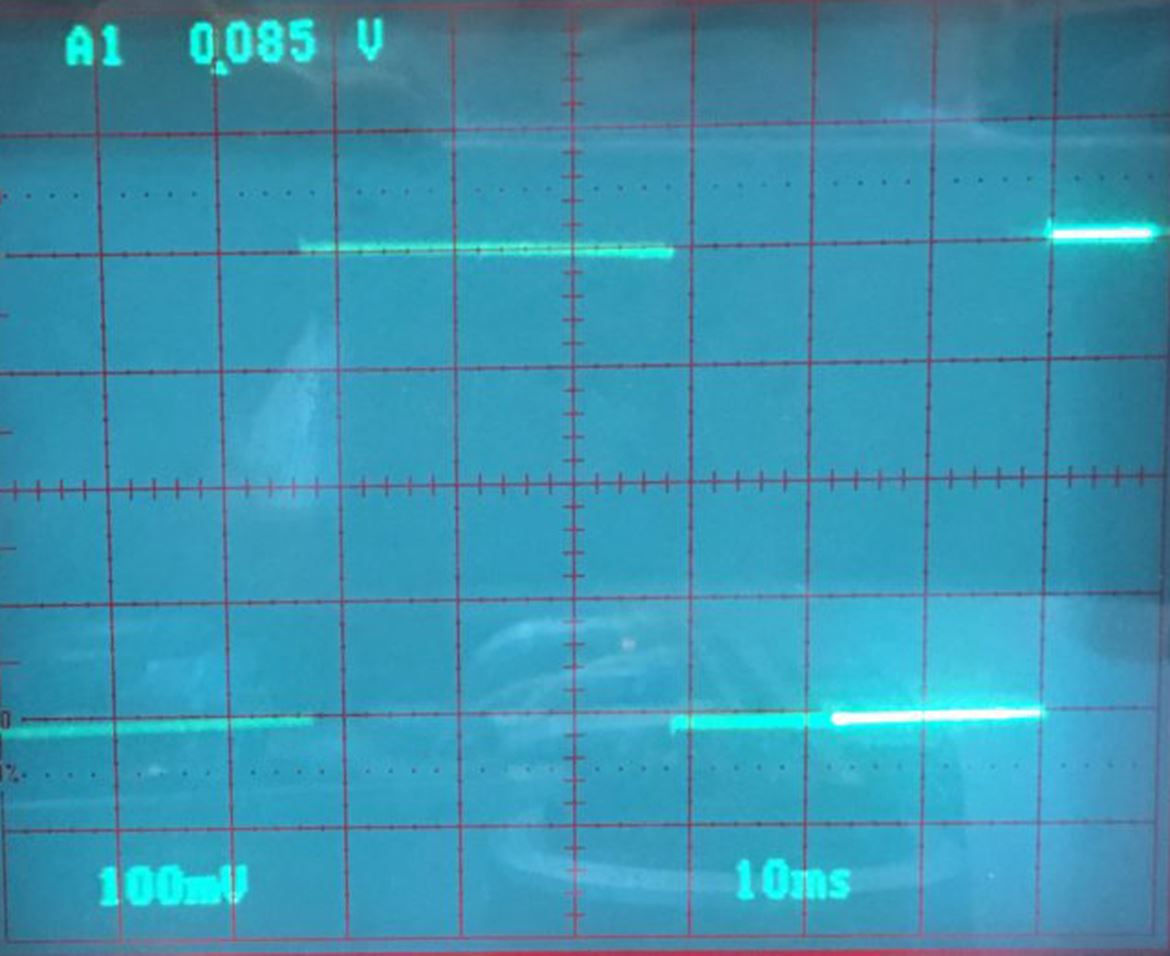

Nagra HD PREAMP 16 Hz square wave reproduction

Nagra HD PREAMP 16 Hz square wave reproduction

The two chassis of the HD PREAMP are made of brushed aluminium and all the parts are CNC machined in Switzerland by long-time and trusted suppliers. The brand new design chassis uses four anti-vibration isolation feet that mechanically separate and isolate the audio chassis from the power supply chassis. They are connected to each other via a custom made composite tray made of aluminium and phenolic material, totally free of resonances.

This specific construction ensures that both audio and power supply units are free from the influence of external vibrational disturbances while it drastically reduces mechanical resonances.

As a result, the HD PREAMP promises to set new standards for preamplification as did the PL-P twenty years ago.

Nota: texto da responsabilidade de Nagra, Audio Technology Switzerland
